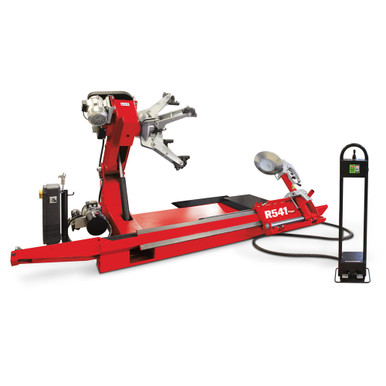

Rotary R541 Commercial Heavy-Duty Tire Changer

The Rotary R541 Commercial Heavy-Duty Tire Changer is engineered to handle the most demanding commercial and industrial tire servicing needs. Designed for tube and tubeless tires, the R541 boasts a rugged build and extended work strokes that deliver maximum efficiency across a wide range of tire types. Its two-speed rotation chucking table can accommodate rim sizes from 11″ to 44″—or up to 56″ with optional VSG108A12 extensions—making it ideal for fleet, truck, and heavy machinery tire applications.

The unit features a wired cable control system with a portable rotational control stand, allowing operators to work with precision and comfort. With standard aluminum adapters, hydraulic arm movement, and included tire paste and brush, the R541 streamlines even the toughest tire changes with professional-grade power and ease.

• Designed for commercial and industrial tires (tube and tubeless)
• Two-speed rotation chuck for faster mounting/demounting
• Hydraulic arm movement for heavy-duty performance
• Portable wired stand for convenient rotational control
• Cable control unit for enhanced operator safety
• Standard aluminum rim adapters included
• Supports rim diameters up to 56″ with optional extensions
• Tire paste lubricant and brush included
• Accommodates tire diameters up to 90.5″
• Robust frame for extended durability in high-volume shops

• Rim Diameter: 11″–43″ (up to 56″ with VSGA108A12)
• Maximum Tire Diameter: 90.5″ (2300 mm)
• Maximum Tire Width: 51″ (1300 mm)
• Chuck Rotation Speed: 4–8 RPM (2-speed)
• Chucking Unit Motor: 1.75 Hp / 1–1.3 kW
• Hydraulic Drive Motor: 2.95 Hp / 2.2 kW
• Power Supply: 220V / 3-phase / 60 Hz
