Description
The Atlas® Pro-9D is a robust and versatile 2-post overhead lift meticulously designed to cater to the demands of both commercial repair facilities and dedicated automotive enthusiasts. With a substantial lifting capacity of 9,000 lbs (approximately 4,082 kg), this lift is well-equipped to accommodate a wide array of vehicles, ranging from compact cars to light-duty trucks. Its innovative overhead, open-floor design ensures an unobstructed workspace beneath the vehicle, significantly enhancing efficiency and safety during various automotive operations.
- High Lifting Capacity: 9,000 lb. (4,082 kg) lifting capacity, suitable for a wide range of passenger vehicles and light trucks.
- Overhead, Open-Floor Design: Provides maximum unobstructed workspace beneath the vehicle, improving efficiency and access.

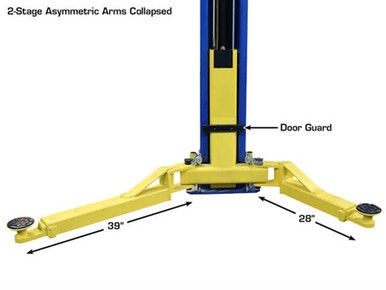

- Adjustable Arm Configurations: Features symmetric/asymmetric arm configurations for versatile vehicle positioning and lifting.
- Automatic Arm Restraints: Enhances safety by securely holding the vehicle’s arms in place during operation.
- Single-Point Lock Release System: Allows for quick and convenient disengagement of safety locks.
- Dual Direct-Drive Cylinders: Ensures smooth, powerful, and efficient lifting operations with reduced maintenance.
- Durable Finish: Features a powder coat finish for superior resistance against corrosion and wear, extending the lift’s lifespan.
- Vehicle Door Protection: Equipped with rubber guards on carriages to prevent damage to vehicle doors.
- Included Accessories: Comes with an 8-piece truck adapter set and all necessary mounting hardware for versatile use and easy installation.
- Comprehensive Warranty: Backed by a 5-year structural warranty and a 2-year hydraulic/power unit warranty, offering long-term peace of mind.
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Overall Height | 144″ (12 ft. or 3,658 mm) |
| Overall Floor Width | 134.5″ (11 ft. 2.5 in. or 3,416 mm) |
| Outside Column to Column | 124.875″ (10 ft. 4.875 in. or 3,172 mm) |
| Inside Column Width | 110″ (9 ft. 2 in. or 2,794 mm) |
| Drive-Thru Width (Symmetric) | 100″ (8 ft. 4 in. or 2,540 mm) |
| Drive-Thru Width (Asymmetric) | 90.5″ (7 ft. 6.5 in. or 2,299 mm) |
| Maximum Lift Height (without adapters) | 68″ (1,727 mm) |
| Maximum Lift Height (with adapters) | 74.25″ (1,886 mm) |
| Minimum Pad Height | 4.5″ (114 mm) |
| Column Size | 7.25″ x 11″ (184 x 279 mm) |
| Column Steel Thickness | 5mm |
| Base Plate Dimensions | 14.25″ x 18″ (362 x 457 mm) |
| Motor/Electrical Requirements | 220V single-phase, 30A breaker recommended |
| Oil Requirement | 3-5 gallons of AW32/AW46 (not included) |
| Concrete Requirement | Minimum 4″ (102 mm) thickness with 3,000 psi rating |
| Shipping Weight | 1,450 lbs. (657.7 kg) |
This product typically ships within 7 to 21 business days from the order date. Returns are accepted within 30 days of delivery. Buyers are responsible for covering all return shipping costs. For full details regarding shipping policies and the return process, please visit autokatools.com.
The Atlas® Pro-9D comes with a robust warranty package, including a 5-year structural warranty and a 2-year hydraulic/power unit warranty (parts only). For full coverage details, specific terms, conditions, or to initiate a warranty claim, please contact us directly via email at contact@autokatools.com or by calling +1 888 859 4420. Proof of purchase will be required for any warranty service.
