Description
The APlusLift AP-10SR is an enhanced version of the popular HW-10KOH-A lift, now featuring a streamlined **single-point safety lock release** for increased ease and efficiency of operation. This heavy-duty 2-post overhead car lift delivers a robust **10,000 LB (approximately 4,536 kg) lifting capacity**, making it ideal for effortlessly raising passenger vehicles, SUVs, and light trucks.
The lift’s design incorporates a reinforced **double “S” column structure**, which enhances stability and durability. Its construction features a **robot-welded steel frame** with a protective **powder-coated finish** for superior longevity and resistance to corrosion, ensuring it withstands the demands of rigorous garage environments. The AP-10SR is equipped with a versatile **combo arm assembly** that intelligently supports both symmetrical and asymmetrical vehicle lifting, providing maximum flexibility for various vehicle types and access points.
Safety is paramount with the AP-10SR. It is **CE Certified**, having been rigorously load-tested at 115% dynamic and 150% static capacity, guaranteeing its structural integrity and reliable performance. Essential safety features include a relief valve to prevent power unit overloading, robust door guards to protect vehicle panels, and an up-limit switch to safeguard cylinder stroke. The lift comes complete with adjustable screw pads and a set of 4-inch tall truck adapters. Structural integrity is further enhanced by the use of **Q355 steel for the carriage** (stronger than standard Q235 steel) and ultra-high molecular self-lubricating nylon sliders for smooth and consistent vertical motion. Backed by an industry-best **3-year parts warranty**, the APlusLift AP-10SR represents a smart and dependable investment for any serious garage or professional shop.
- 10,000 LB (4,536 kg) Capacity: Easily lifts passenger vehicles, SUVs, and light trucks.
- Single Point Safety Lock Release: Streamlined centralized control for simplified lift operation.

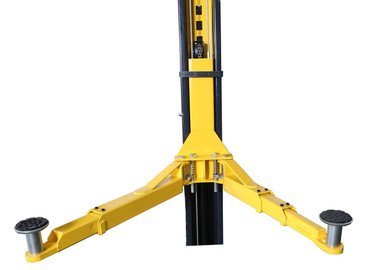

- Combo Arm Assembly: Supports both symmetrical and asymmetrical vehicle lifting for versatility.
- Durable Construction: Robot-welded steel frame with a powder-coated finish for longevity and corrosion resistance.
- CE Certified Structure: Rigorously load-tested at 115% dynamic and 150% static capacity for enhanced safety.
- Adjustable Pads & Truck Adapters: Includes one set of 4″ height adapters and adjustable screw pads.
- High-Strength Materials: Features Q355 steel for the carriage, offering superior structural integrity over Q235 steel.
- Smooth Operation: Utilizes ultra-high molecular self-lubricating nylon sliders for seamless vertical motion.
- Comprehensive Safety Features: Includes a relief valve to protect the power unit, rubber door guards, and an up-limit switch for cylinder protection.
- Reinforced Double “S” Column Design: Enhances stability and structural rigidity.
- Industry-Best 3-Year Parts Warranty: Provides extensive coverage and peace of mind.
| Lift Model | AP-10SR |
| Lifting Capacity | 10,000 LB (4,536 kg) |
| Overall Height | 143 3/16″ (363.7 cm) |
| Overall Width | 134 5/16″ (341.1 cm) |
| Drive-Thru Width | 100″ (254.0 cm) |
| Column to Column Width | 109″ (276.9 cm) |
| Lift Height (w/ Truck Adapters) | 81″ (205.7 cm) |
| Lift Height (Without Adapters) | 75″ (190.5 cm) |
| Maximum Arm-to-Ground Height | 71″ (180.3 cm) |
| Minimum Pad Height | 4″ (10.2 cm) |
| Front Arms | 3-stage reach from 22 7/8″ to 42 5/8″ |
| Rear Arms | 2-stage reach from 33 5/8″ to 52 7/8″ |
| Motor | 220V Single Phase, 3HP, 10A (30A breaker recommended) |
| Lift Time to Full Rise | 50 seconds |
| Shipping Weight | 1,400 lbs + 120 lbs (extension crate) = 1,520 lbs (689.5 kg) |
| Steel Thickness (Column) | 13/64″ (approx. 5.16 mm) |
| Steel Thickness (Carriage) | 15/64″ (approx. 5.95 mm) |
| Steel Thickness (Yoke) | 9/16″ (approx. 14.3 mm) |
| Steel Thickness (Base) | 5/8″ (approx. 15.9 mm) |
| Concrete Requirement | 6″ thick at 3500 PSI for vehicles over 9,000 LB (minimum) |
| Warranty | 3-year parts warranty |
Included Parts:
- 4 adjustable screw pads
- 4 truck adapters (4″ height)
- 10 anchor bolts
- 10 shims
- 2 tool trays
- 2 toe guards
Optional Adapters:
- 2 3/4″ and 6″ truck adapters available for purchase separately.
