Description

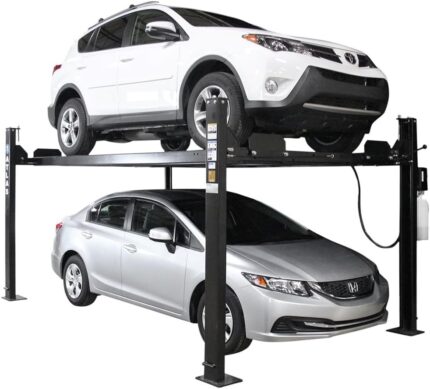

The Atlas Apex 8 is an ALI certified four-post lift, specifically designed and manufactured for the discerning homeowner or restoration garage. With an 8,000 lb. capacity, this portable lift is ideal for vehicle storage or for performing maintenance and restoration work. It is important to note that these lifts are not intended for commercial repair garages that require frequent daily operation. If you have questions about the best lift for your specific application, it is recommended to consult with a sales professional.
- ALI Certified for safety and quality assurance.
- 8,000 lb. (3,628 kg) lifting capacity.
- Durable Atlas Powder Coat Finish.
- Single Point Release for ease of operation.
- Secure Ladder Lock Design.
- Dual Safety Lock System for enhanced safety.
- Includes Steel Approach Ramps for easy vehicle access.
- Comes with Four Wheel Stops and Two Rubber Wheel Chocks for secure positioning.
- Caster Kit with Polyurethane Wheels included for portability.
- Drip Trays and Jack Trays are included for convenience.
- Perfect for vehicle storage or working on vehicles.
| Capacity | 8,000 lb. (3,628 kg) |

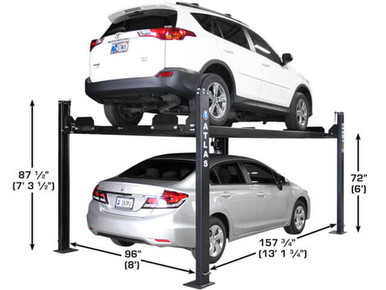

| Lift Height to Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67 1/2″ (5′ 7 1/2″) |
| Height of Columns (including nuts) | 87 1/2″ (7′ 3 1/2″) |
| Overall Width (w/o motor and casters) | 104 1/4″ (8′ 8 1/4″) |
| Overall Width (with motor) | 114 1/2″ (9′ 6 1/2″) |
| Overall Length w/o Approach Ramps (including lock bar) | 186 1/2″ (15′ 6 1/2″) |
| Overall Length with Approach Ramps (including lock bar) | 219 1/2″ (18′ 3 1/2″) |

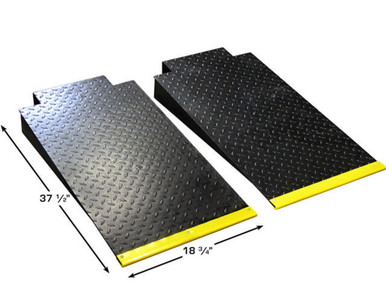

| Approach Ramps | 37 1/2″ (3′ 1 1/2″) |

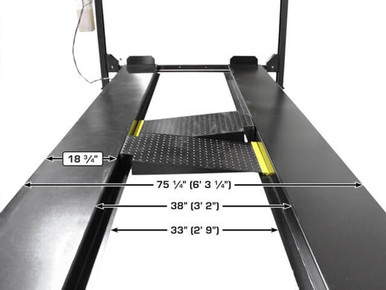

| Runway Width | 18 3/4″ |
| Runway Rail Width | 2 1/2″ |

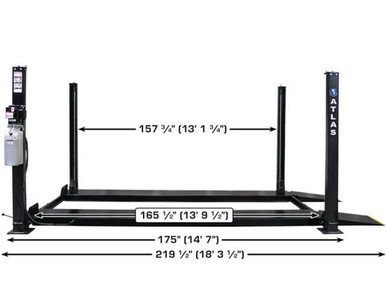

| Runway Length | 165 1/2″ (13′ 9 1/2″) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 33″ (2′ 9″) |
| Outside of Runway to Outside of Runway | 75 1/4″ (6′ 3 1/4″) |

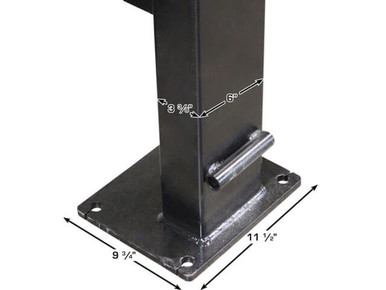

| Column Size | 6″ x 3 3/8″ |
| Clearance Between Columns | 96″ (8′) |
| Length Between Columns | 157 3/4″ (13′ 1 3/4″) |
| Column Base | 11 1/2″ x 9 3/4″ |
| Max. Wheelbase | 153 1/2″ (12′ 9 1/2″) |
| Drive Thru (Outside of Tire to Outside of Tire) | 80 1/4″ (6′ 8 1/4″) |
| Cable Diameter | 7/16″ (.4375″) |
| Steel Gauge | 6 Gauge (.1875″ / 3/16″ / 4.75mm) |

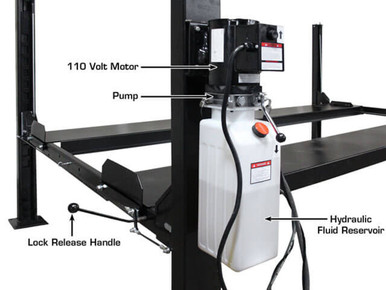

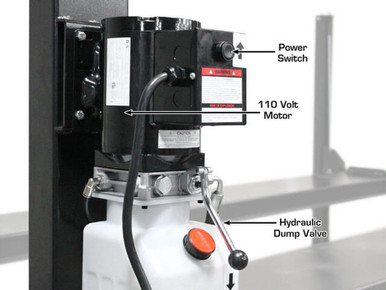

| Motor/Electrical Requirement | 110 Volt, Single (1) Phase; 30 Amp Breaker Recommended |
| Oil Requirement | 2.6 Gallons AW32/AW46 |
| Shipping Weight | 2,000 lb. (907.2 kg) |
Here’s a video providing information and a Q&A about 4-post residential garage lifts:
- 4 Post Residential Garage Lift Information and Q&A !: This video discusses the features and benefits of car lifts, specifically focusing on four-post lifts for home garages [00:00:20]. It covers different styles of lifts, certified vs. non-certified options, installation considerations like ceiling height, included features, optional accessories, safety, maintenance, and electrical requirements.
